CONSTELLATION REFLEX STEERING-- SMALLER FOOT PRINT MEANS GREATER FOOT ROOM FOR YOU.

         The Reflex pedestal (standard equipment on the 47LRC SEries model) has a unique wheel which is mounted on the forward face of the pedestal. This allows unparalleled access to the pedestal mounted instrumentation and controls. Mounting areas for a compass, 4 industry standard instruments, plus a single lever engine control and more.  There are no wheel spokes to reach thru, or around, allowing unimpeded access to throttle and shift controls allowing continual access to the bow thruster for micro adjustments during tight docking situations.

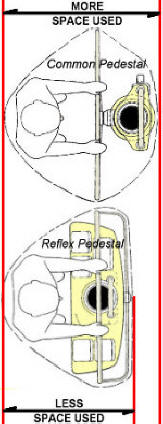

          In addition, because the steering wheel wraps back around the pedestal, the wheel and the pedestal share the same space instead of each needing valuable space. This allows the pedestal to be positioned further aft, taking up less room in the forward end of the cockpit. A major benefit in a center cockpit sailing yacht.

Constellation Reflex Steering

Unique front mounted steering wheel that creates more space in the cockpit.

 No wheel spokes to reach thru or around when accessing throttle and shift controls while turning the wheel while docking.


Instruments and compass mounted on Pedestal can be viewed without wheel spokes obstructing vision.

Large, easy to control wheel brake.
